✓ Vertical & Horizontal Configurations Available
Aboveground FRP Tank
Aboveground FRP tanks (fiberglass reinforced plastic) are shop fabricated tanks designed for atmospheric service. They are commonly used for liquid storage where corrosion resistance and material compatibility matter. They may also be selected where carbon steel is not ideal and polyethylene does not meet the structural or temperature requirements.
FRP is made from thermoset resin reinforced with glass fiber. Common resin options include orthophthalic polyester, isophthalic polyester, and vinyl ester. The right resin depends on the stored liquid, its concentration, and the operating conditions. Tanks are available in vertical and horizontal configurations, with project specific connections, fittings, and access points. Submittal documentation is often available from the manufacturer.
Browse Our Aboveground FRP Tanks
Tank requirements should be matched to the stored liquid, concentration, operating temperature, and service conditions. Available sizes, materials, and configurations vary by tank type and use.
Aboveground FRP Details
Aboveground FRP storage tanks are specified across industrial, municipal, and facility applications where corrosion resistance, chemical compatibility, and service life are key design considerations. They are commonly used where carbon steel is susceptible to corrosion and where polyethylene may not provide the structural rigidity or temperature tolerance required by the application.

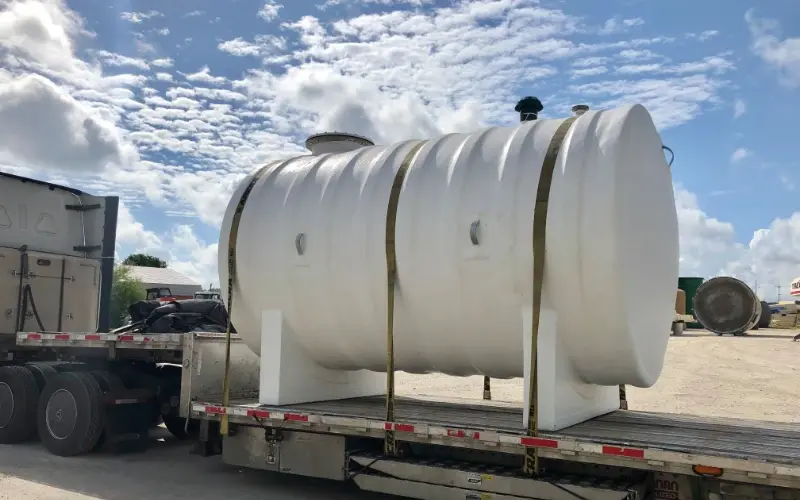

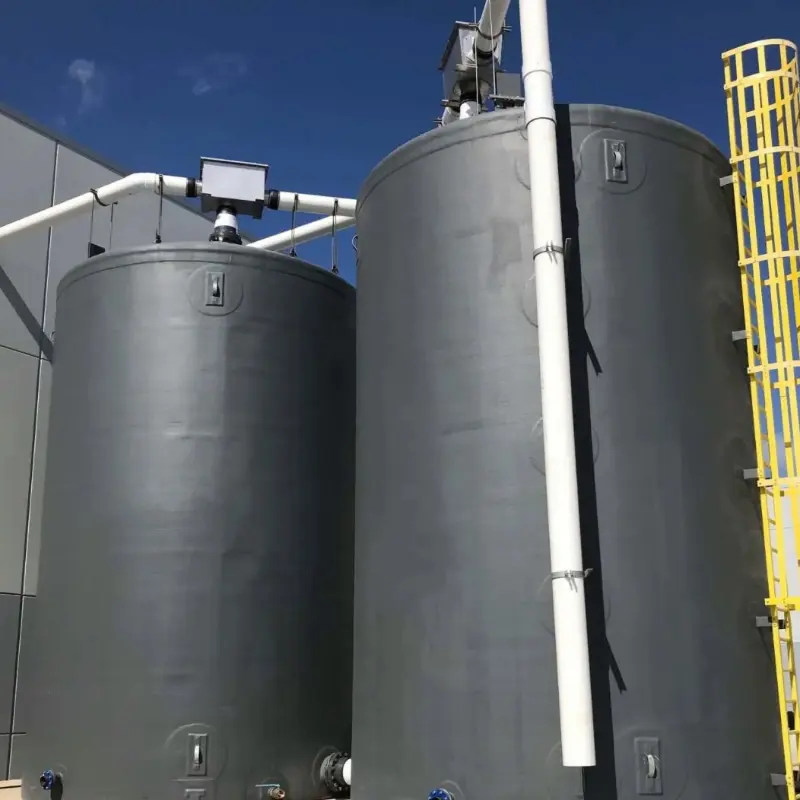

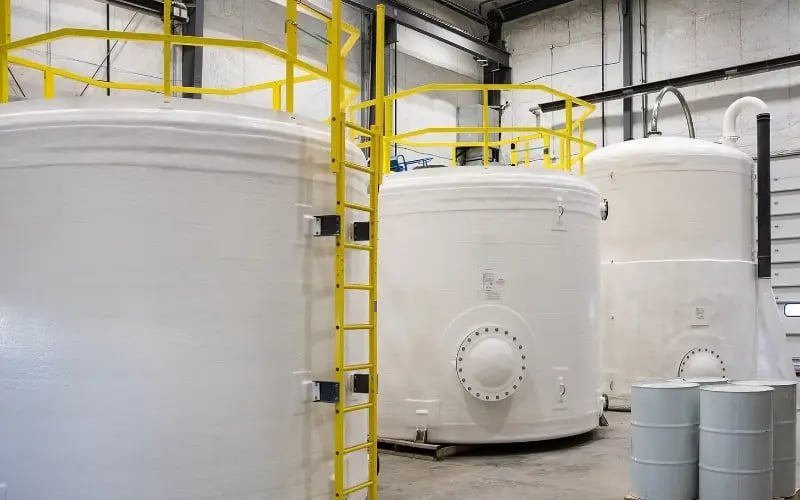

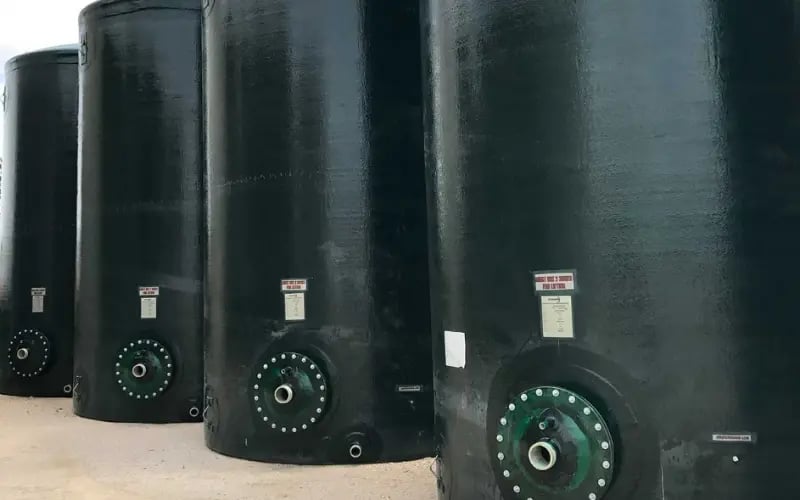

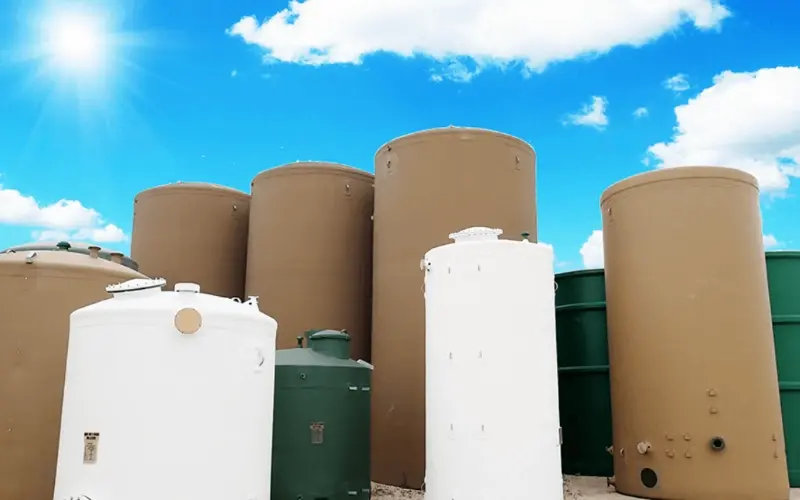

FRP offers a high strength to weight ratio and is substantially lighter than steel, which can reduce transport, handling, and foundation load requirements while maintaining structural capability. Tanks are available in vertical and horizontal orientations, along with cone bottom, open top, and mix tank configurations to suit site layout and process requirements. Connections and access points are configured by project, with inlet, outlet, vent, overflow, drain, and manway options specified at the time of order.
Resin selection is the primary compatibility factor. Common systems include isophthalic polyester, vinyl ester, and select special order resins. The appropriate resin depends on the stored liquid, its concentration, and the operating temperature. Compatibility should be confirmed during quoting. Submittal documentation, including cut sheets and drawings, is typically available from the manufacturer.
